Series vs. Parallel Circuits: Differences, Advantages, and Applications

Series and parallel circuits are fundamental principles of electrical engineering that determine current flow in circuits. Many users seek clear explanations to understand the difference and choose the appropriate variant for projects such as lighting or solar systems. This article illuminates both circuit types in detail, including formulas, examples, and practical tips for use in homes and energy technology.

What is a Series Circuit?

In a series circuit, components such as resistors, lamps, or solar modules are connected one after another, so the current has only one path. The current flow remains the same through all components, while the voltage divides. The total resistance is the sum of the individual resistances: R_total = R1 + R2 + R3.
If one element fails, such as a lamp, the entire circuit is interrupted – all other components go out. This circuit is suitable for simple applications with constant current requirements, such as fairy lights. Typical series circuit examples can be found in Christmas lights or older car lamps.

What is a Parallel Circuit?

In a parallel circuit, the wires branch out so that each component has its own current path. The voltage remains the same across all components, and the total current is the sum of the individual currents: I_total = I1 + I2 + I3. The total resistance is calculated as the reciprocal of the sum of the reciprocals: 1/R_total = 1/R1 + 1/R2 + 1/R3.
The failure of one element does not affect the others, as each branch operates independently. These advantages of parallel circuits make them ideal for household power grids or modern LED lighting.

Series Circuit vs. Parallel Circuit: Direct Comparison

Both circuit types differ significantly in current, voltage, and reliability. The following table summarizes the key differences:

This series circuit vs. parallel circuit comparison shows that parallel circuits are more flexible but require more current.

Current and Voltage Laws in Circuits

Ohm's Law U = R * I applies in both cases but adapts. In series circuits, I = constant, U_total = U1 + U2. In parallel circuits, U = constant, I_total = I1 + I2. Kirchhoff's Laws complement this: current law (inflowing = outflowing) and voltage law (sum of voltages = 0).
These laws are essential for calculations in series and parallel circuits. Formula examples: With two 10-ohm resistors in series, the result is 20 ohms; in parallel, only 5 ohms.

Advantages and Disadvantages of Both Circuit Types

Advantages of series circuits include low material consumption and simple assembly; disadvantages are the dependence of all elements and fluctuating brightness in lamps. Advantages of parallel circuits offer independence and constant power but require thicker cables due to higher current.
In practice, parallel circuits predominate in modern applications because they are fault-tolerant. Series circuits are suitable for special cases with the same current requirement.

Market Trends in Circuit Applications

The market for smart circuits is growing rapidly, driven by IoT and renewable energy. According to industry reports, the demand for parallel circuits in solar systems is increasing by 15 percent annually, as they enable decentralized systems. Series circuits continue to be used in cost-effective LED strips.
User profiles show that DIY enthusiasts and electricians are increasingly combining hybrid circuits.

At DRBO Greenenergy, we pursue a clear goal: to drive the decentralized energy transition together with our customers. We already supply numerous hardware stores, specialist dealers, and installation companies with high-quality solar and energy storage solutions, with a focus on customized services for business customers such as installation companies and real estate developers.

Top Products for Circuit Applications

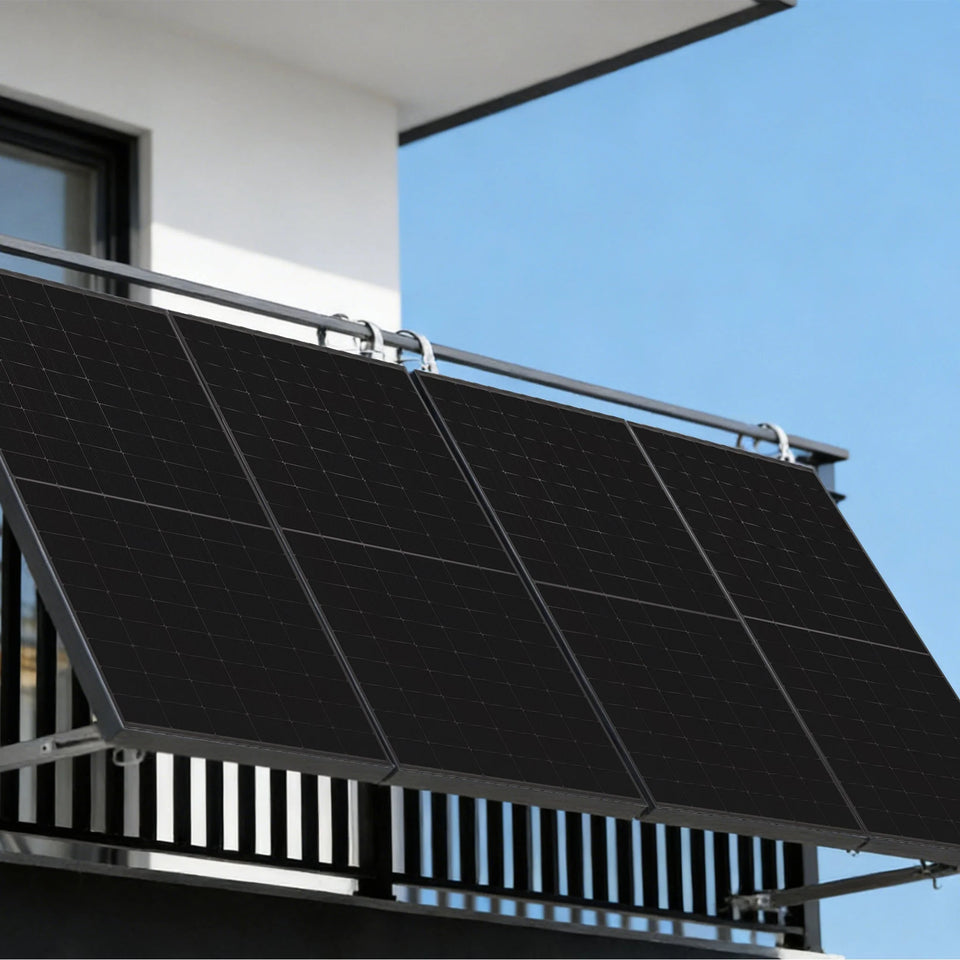

Modern products often use parallel circuits for balcony power plants. Here is an overview of relevant solutions:

These products maximize energy efficiency through optimized circuitry.

Competitive Comparison: Types of Circuits in Use

Hybrid circuits combine series and parallel connections for best results.

Parallel connections dominate in solar technology.

Core Technology Analysis

In solar power systems, modules are often connected in parallel to maintain stable voltage. Series connections are suitable for inverters with constant current. Performance parameters: Parallel connection increases current by up to 30 percent at the same voltage.

Application Examples with ROI

A balcony power plant with a parallel connection saves 200 euros annually in electricity costs, with a payback period of 2 years. One user reports: "After switching, all LEDs lit up independently." Series connection in string lights reduces cable effort by 40 percent.

Buying Guide for Circuits

Choose parallel connection for reliability, series connection for simplicity. Consider current strength and cable length. Test with a multimeter.

Future Trends in Circuits

By 2030, smart parallel circuits with AI will reach 50 percent of households. Hybrid systems for microgrids are booming.

Frequently Asked Questions about Series and Parallel Circuits

When to choose series connection?
For the same current requirement and low costs.

Advantages of parallel connection?
Independent operation, constant voltage.

Formula for series connection?
R_total = Sum of R_i.

Parallel connection in solar?
Ideal for stable voltage in solar modules.

Difference between current and voltage?
Current is the same in series, voltage is the same in parallel.

Which for LEDs?
Parallel connection for flexibility.

Failure in series connection?
Everything stops.

Calculate parallel connection?
1/R_total = Sum 1/R_i.

Household application?
Parallel connection for sockets.

Hybrid circuit?
Combines the advantages of both.
